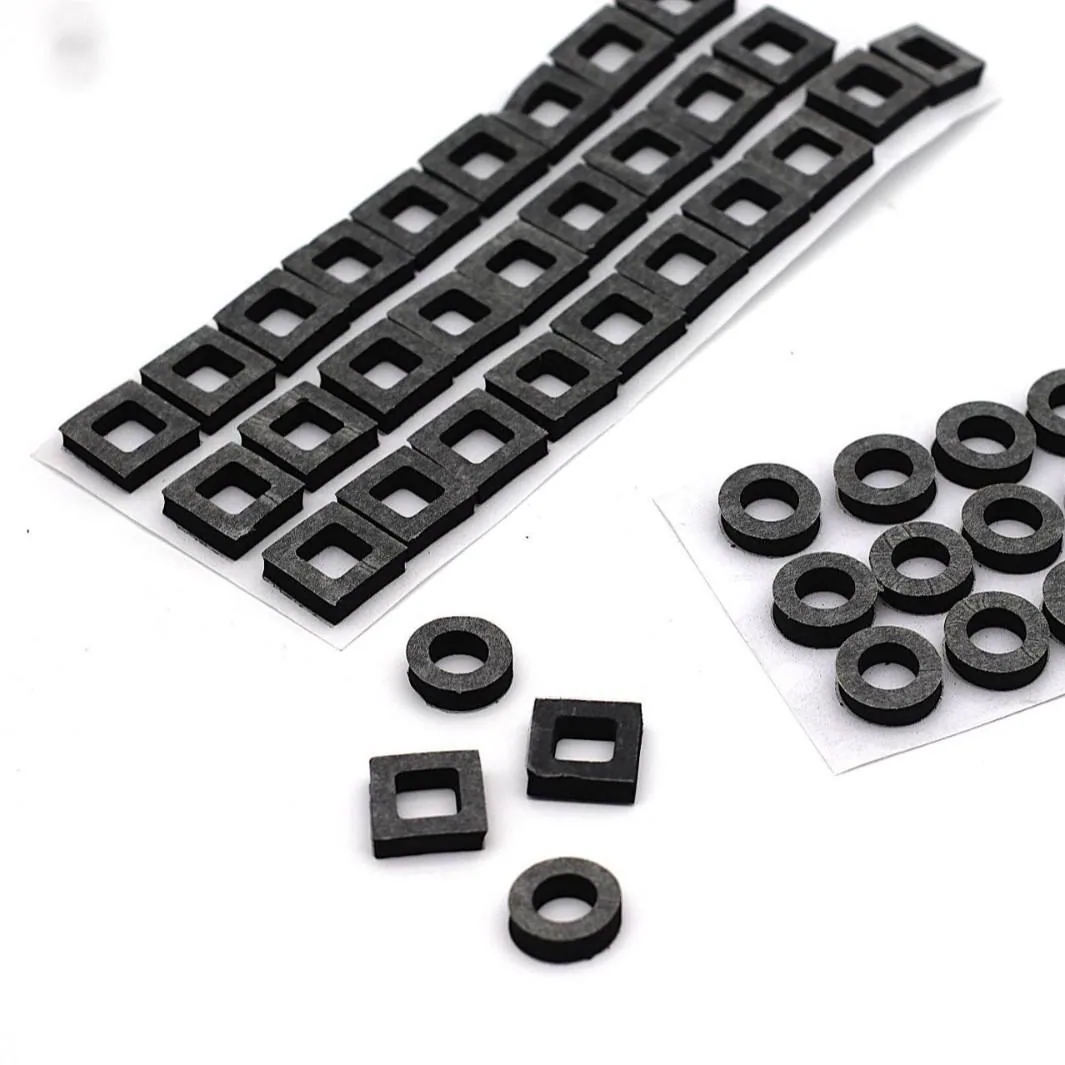

Custom Foam Gaskets
Die-cut foam gaskets that compress into irregular gaps to control water, dust, air and vibration.
Upload Drawing Request a Quote
Made for Your Application
Foam gaskets are cut from open-cell or closed-cell materials selected around ingress protection, compression force, temperature and chemical exposure. Their thickness and profile create a repeatable compressed barrier around an enclosure without machining rigid parts.
Material advantage
Foam conforms to uneven interfaces at relatively low clamp force, which makes it practical for thin panels and complex enclosures.
Key features
- Low-force compression
- open- or closed-cell choices
- custom apertures
- PSA mounting
- continuous-frame layouts.
Custom Specifications
| Thickness range | 0.5-50 mm |
|---|---|
| Typical thickness | 3-6 mm |
| Size range | 5 mm strips to 1,500 x 1,000 mm sheets |
| Temperature range | -40 to 120 C; material-dependent |
| Hardness range | Typically Shore 00 25-70 or compression-deflection specified |
| Tolerance | Typically +/-0.25 mm profile; +/-10% thickness by foam grade |

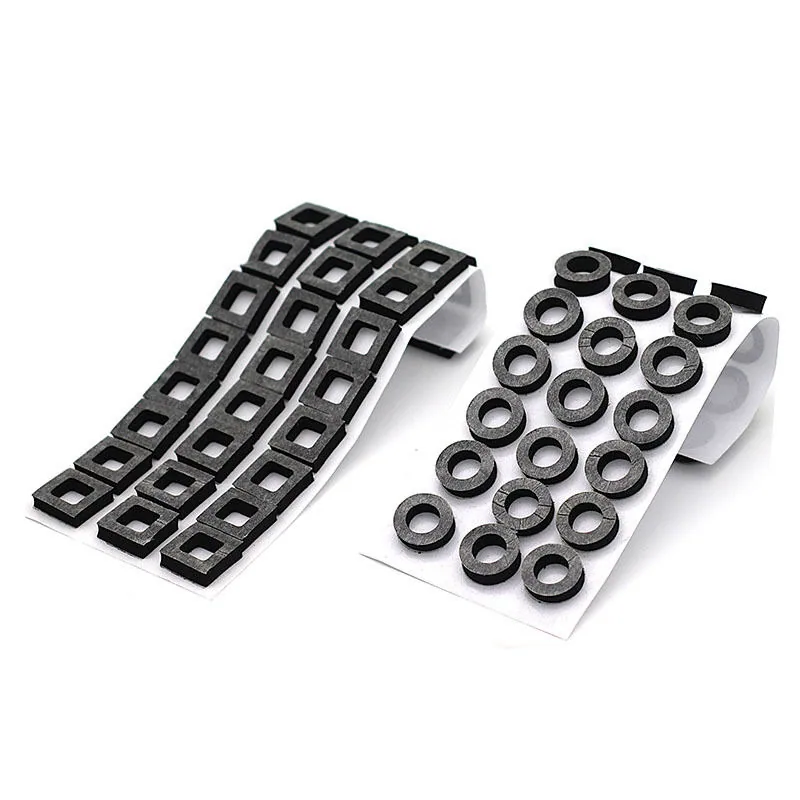

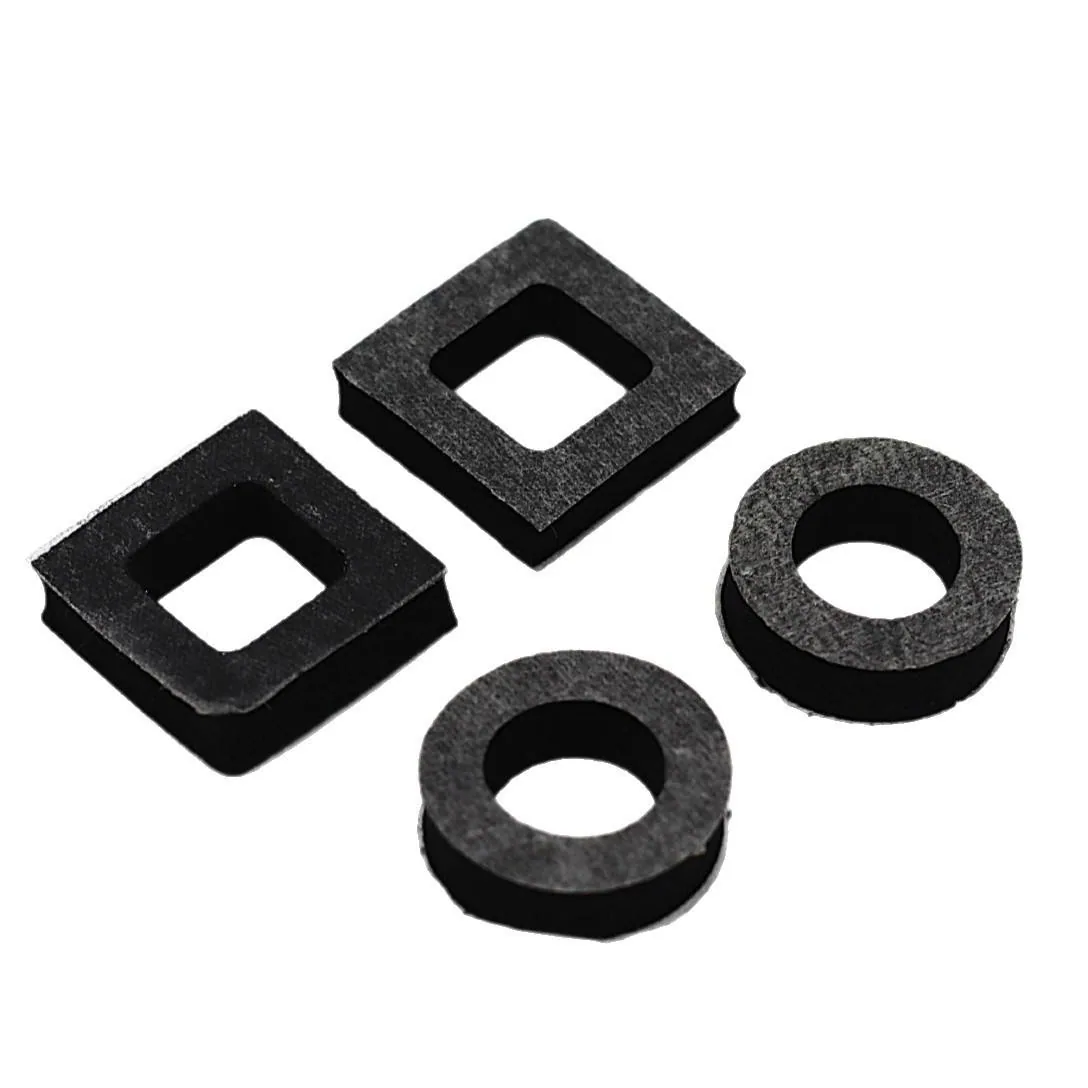

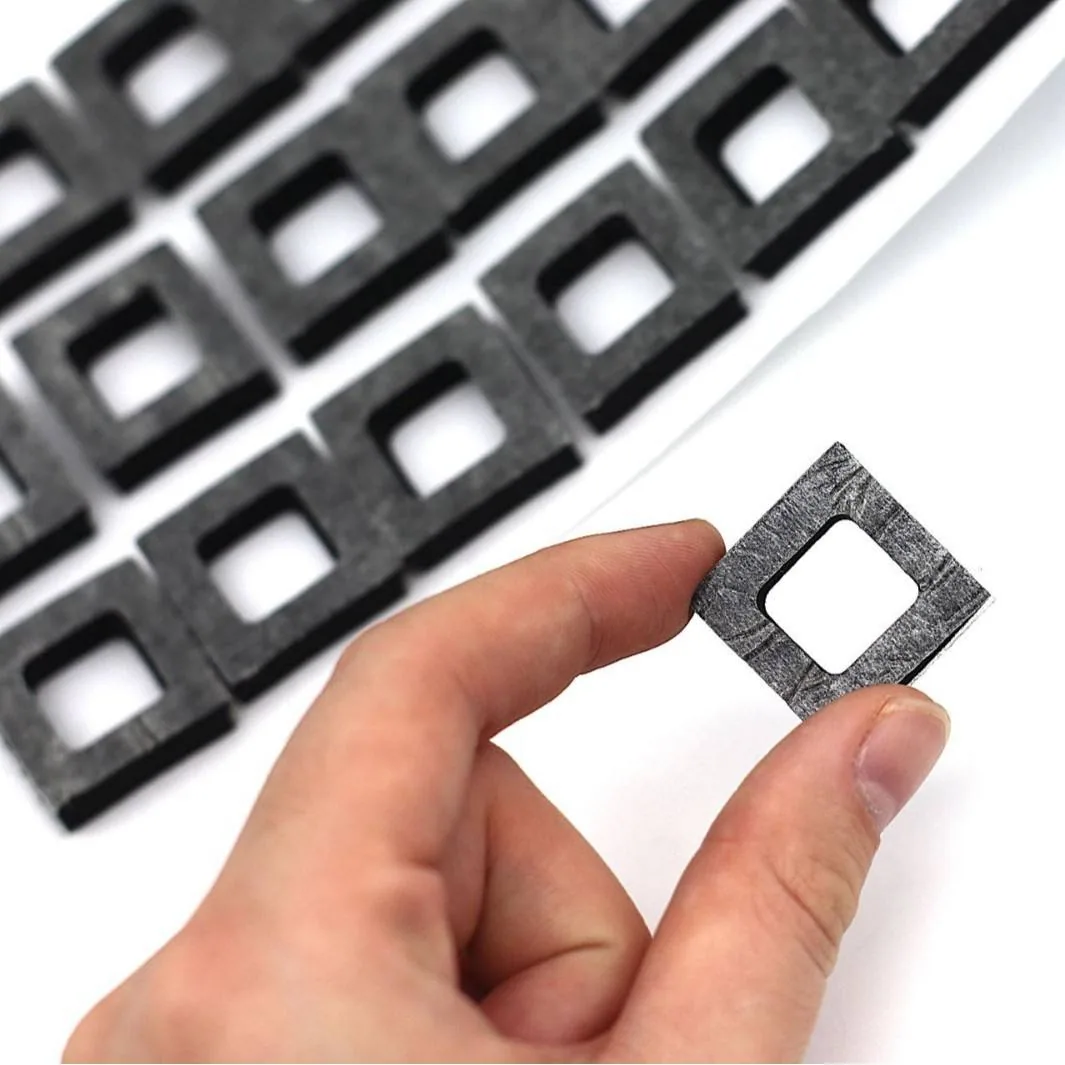

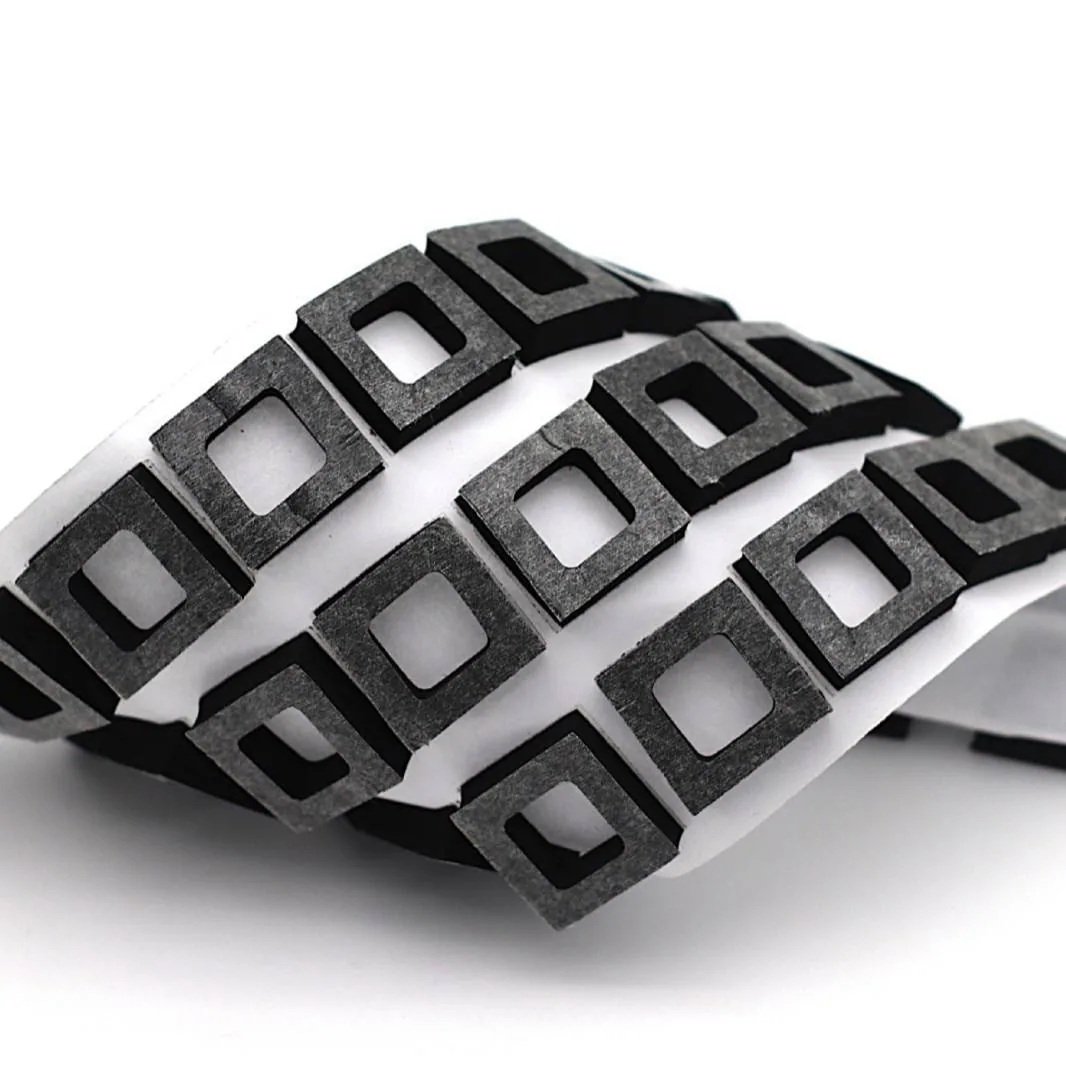

PRODUCT EXAMPLES
Custom Part Gallery
Manufacturing & Finish Options
Production process
Flatbed die cutting, rotary die cutting, waterjet cutting and adhesive lamination
Manufacturing notes
Compression target, seam layout and cell type should be defined before selecting foam thickness.
Adhesive options
Acrylic PSA, rubber PSA, high-temperature acrylic and low-surface-energy adhesive options.
Surface options
Skin-on, skived, laminated film, fabric-facing or graphite-coated options.
Where It Fits
Best for
- Door and panel seals, HVAC housings, lighting fixtures, electronics enclosures, duct interfaces and anti-rattle joints.
Common industries
- HVAC, lighting, electronics, appliances, telecom, transportation and industrial enclosures.
Consider another option when
Very high-pressure fluid seals, sharp-edged compression paths, or media where the selected foam lacks chemical compatibility.
MATERIAL OPTIONS
Choose the Right Material Construction
Design & Engineering Notes
Design guidelines
Aim for a controlled compression range rather than bottoming out the foam; maintain adequate land width around apertures.
Engineering notes
Closed-cell grades are generally favoured for moisture barriers; open-cell grades are useful for air management and lower-force damping.
Selection Guide
Choose EPDM for outdoor weathering, neoprene for balanced oil and weather exposure, and cross-linked PE for crisp closed-cell profiles.
Material comparison
Foam gaskets seal lower-force joints better than solid rubber; solid rubber offers higher durability where extrusion or abrasion is severe.
Standards & requirements
Customer drawing, compression-deflection criteria and application-specific ingress test plan where required.
Drawing Requirements
PDF, DXF, DWG, STEP, AI, CAD screenshots and dimensioned sketches can be reviewed. Don’t have a CAD drawing? A dimensioned PDF, sketch or clear image may be sufficient for an initial review.
Frequently Asked Questions
Should I choose open-cell or closed-cell foam?
Closed-cell foam is generally selected for water and dust barriers; open-cell foam is better where air flow or very soft compression is desired.
How much should a foam gasket compress?
The workable range depends on the grade, but a controlled partial compression is preferable to crushing the foam flat.
Can a foam gasket include bolt holes and cut-outs?
Yes. Die cutting can add holes, windows, mitres and registration features in the same operation.
Is adhesive required on every foam gasket?
No. Adhesive is used for installation retention; a clamped gasket can often seal without it.
