Material selection
Choose EPDM for weather resistance, neoprene for balanced oil and weather exposure, or silicone foam for hotter environments.
DRAWING-BASED CUSTOM PARTS
EPDM Foam Anti-Vibration Pads
Weather-resistant EPDM foam pads that silence panel buzz, cushion contact and isolate light vibration in compact assemblies.
Custom EPDM closed-cell foam pads for anti-rattle, gap control and light vibration isolation in automotive and industrial equipment.
Engineered EPDM Foam Anti-Vibration Pads
EPDM foam anti-vibration pads are die cut into strips, blocks or shaped cushions for interfaces that would otherwise transmit buzz, squeak or minor shock. The foam cells support a controlled compression response while EPDM chemistry handles outdoor and ozone exposure well.
Material approach
EPDM foam remains resilient through weather exposure and resists water better than many open-cell cushioning materials.
Key features
- Closed-cell moisture resistance
- weather durability
- vibration damping
- flame-retardant grade options
- die-cut shapes and strips.
Custom Specifications
Typical values for reference only. Final material grade, tolerance and dimensional capability are confirmed after drawing review.
| Material | Flame-retardant EPDM closed-cell foam |
|---|---|
| Thickness range | 1-30 mm |
| Typical thickness | 3-8 mm |
| Size range | 10 mm strips to 1,500 x 1,000 mm sheets |
| Temperature range | -40 to 120 C |
| Hardness range | Shore 00 30-65 or compression-deflection specified |
| Tolerance | Typically +/-0.30 mm profile; thickness grade dependent |
| Standards | FMVSS 302 and UL 94 grade options; RoHS and REACH documentation by material. |
MATERIAL SELECTION
EPDM Foam Anti-Vibration Pads Material Comparison
Use this as a starting point only; the selected grade and construction are confirmed against the drawing and application.
| Material | Primary strength | Selection focus | Best fit |
|---|---|---|---|
| EPDM foam | EPDM foam remains resilient through weather exposure and resists water better than many open-cell cushioning materials. | Choose EPDM for weather resistance, neoprene for balanced oil and weather exposure, or silicone foam for hotter environments. | Automotive trim interfaces, outdoor panels, HVAC housings, appliance anti-rattle pads and light equipment isolation. |
| neoprene foam | Compression deflection, water absorption, recovery, flammability and density depend on the selected EPDM foam grade. | Choose EPDM for weather resistance, neoprene for balanced oil and weather exposure, or silicone foam for hotter environments. | Automotive trim interfaces, outdoor panels, HVAC housings, appliance anti-rattle pads and light equipment isolation. |
| silicone foam | Compression deflection, water absorption, recovery, flammability and density depend on the selected EPDM foam grade. | Choose EPDM for weather resistance, neoprene for balanced oil and weather exposure, or silicone foam for hotter environments. | Automotive trim interfaces, outdoor panels, HVAC housings, appliance anti-rattle pads and light equipment isolation. |
PRODUCT EXAMPLES

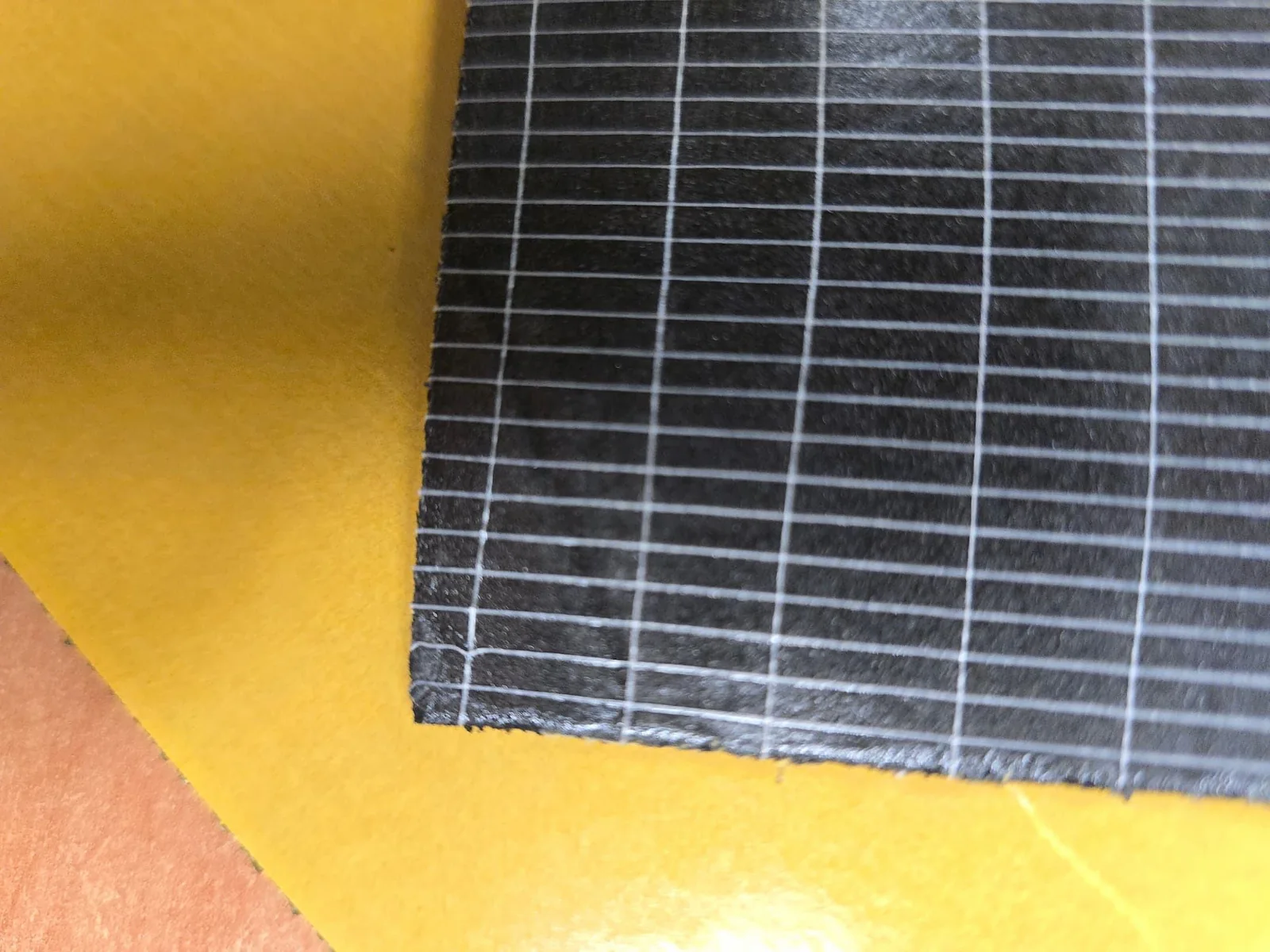

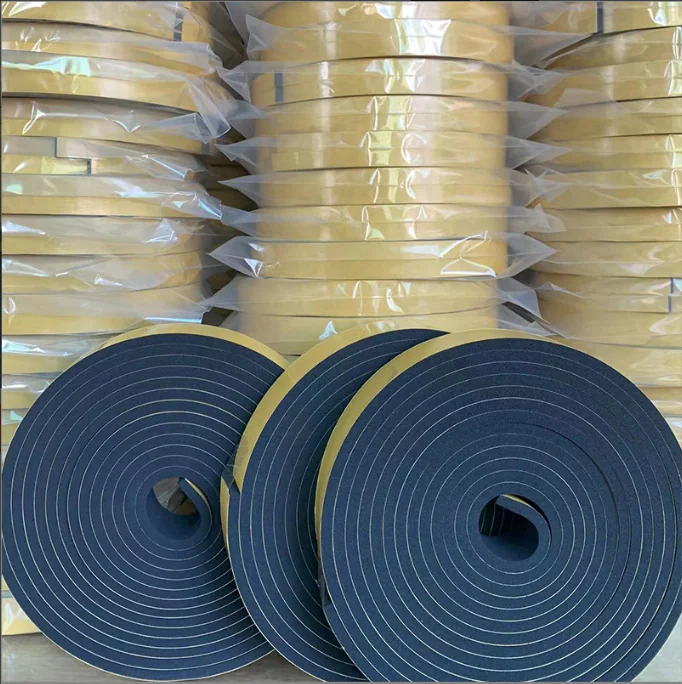

Custom Part Gallery
CONVERTING OPTIONS
Manufacturing & Finish Options
Specify loaded thickness and whether the part needs a fire-retardant certification or adhesive retention.
Custom Die Cutting
A repeatable route for defined profiles after tooling and project review.
Custom Die Cutting →CNC Knife Cutting
A flexible route for complex profiles and variable project volumes.
CNC Knife Cutting →Adhesive Backing
PSA and liner constructions selected for the mating surface and assembly method.
Adhesive Backing →Custom Gasket Prototyping
Sample parts for fit, material and assembly validation before production.
Custom Gasket Prototyping →DESIGN REVIEW
Engineering Guide
Practical points to include when selecting foam and preparing a drawing for review.
Geometry and thickness
Avoid crushing the foam fully; distribute the load over an adequate area and provide relief around sharp panel edges.
Assembly performance
For persistent vibration, tune thickness and compression deflection to the actual mass and mounting geometry rather than relying on a generic pad thickness.
Production route
Specify loaded thickness and whether the part needs a fire-retardant certification or adhesive retention.
Applications / Where It Fits
Custom EPDM closed-cell foam pads for anti-rattle, gap control and light vibration isolation in automotive and industrial equipment. The final specification is established around the drawing and operating requirements.
When This Part May Not Be the Best Choice
High static load mounts, fuel contact, sharp-edge abrasion or high-frequency precision isolation that requires an engineered isolator.
PROJECT DELIVERY
Manufacturing Capabilities
Available options are confirmed against the selected material, drawing and order requirements.
| Capability | Options |
|---|---|
| Manufacturing process | Flatbed die cutting, rotary die cutting, waterjet cutting and adhesive lamination |
| Adhesive options | Acrylic PSA, rubber PSA, high-tack acrylic and selective adhesive zones. |
| Surface options | Skin-on, skived, fabric-laminated, graphite-coated and custom-colour surfaces. |
| Custom options | Thickness, density, flame rating, shape, adhesive, slit strips, tabs and kitted packaging. |
| Standards | FMVSS 302 and UL 94 grade options; RoHS and REACH documentation by material. |
Drawing Requirements
Recommended drawing formats
Please include
- supported mass
- loaded thickness
- vibration source
- mounting surface and flame requirement
For a precise epdm foam anti-vibration pads quotation, provide supported mass, loaded thickness, vibration source, mounting surface and flame requirement.
Frequently Asked Questions
Can EPDM foam pads be used in vehicle interiors?
Yes. They are commonly used for anti-rattle and gap control, subject to the required flammability grade.
Will closed-cell EPDM absorb water?
Closed-cell grades resist water uptake far better than open-cell foam, making them useful around exterior interfaces.
Can the pads include adhesive?
Yes. Adhesive can retain the pad during assembly while the compressed interface manages the operational load.
Are these pads suitable for heavy machine mounts?
They are best for light-to-moderate isolation and anti-rattle; heavier machinery typically requires engineered rubber or spring mounts.
What should a drawing include for epdm foam anti-vibration pads?
Include supported mass, loaded thickness, vibration source, mounting surface and flame requirement.
Can epdm foam anti-vibration pads be supplied for production assembly?
Yes. Specify loaded thickness and whether the part needs a fire-retardant certification or adhesive retention. Delivery format, liner configuration and packaging are specified for the assembly workflow.
How is the right epdm foam anti-vibration pads construction selected?
Choose EPDM for weather resistance, neoprene for balanced oil and weather exposure, or silicone foam for hotter environments. The drawing and operating conditions establish the final construction.
